Lesson 11 – Process Optimization and Troubleshooting

What You Will Learn

Identify common polishing problems.
Explain possible causes of polishing defects.
Learn basic troubleshooting methods.
Understand how process adjustments improve results.
Recognize the importance of process documentation.

Common Polishing Problems

Even well-designed polishing programs may produce unexpected results, because the polishing process depends on many mechanical, chemical, and measurement-related factors working together. Surface errors can appear when machine settings drift, polishing tools wear unevenly, slurry conditions change, or measurement data becomes inaccurate. Common problems include uneven material removal, slow polishing rates, edge roll-off, surface scratches, and poor surface finish. Some defects develop gradually over several polishing cycles, while others appear suddenly because of contamination, tool damage, or an incorrect program setting. Finding the cause quickly helps reduce production delays, prevents unnecessary rework, and protects valuable optical components from additional damage. Early troubleshooting also helps keep the process stable, because a small issue can become more difficult to correct if it continues through several polishing cycles.

Finding the Cause

Troubleshooting begins by reviewing the entire polishing process, rather than changing machine settings immediately. Because many defects can have similar appearances, operators must examine the available evidence and eliminate possible causes one at a time. Operators should first verify that the metrology data is accurate, the correct optical prescription was used, and the measurement setup was properly aligned. Next, they should inspect the polishing tool for wear, damage, or contamination, while also confirming that the polishing slurry is clean, properly mixed, and being delivered at a consistent rate. Machine settings should also be checked to ensure that polishing pressure, spindle speed, dwell time, feed rate, and toolpaths match the intended polishing program. Workholding, machine calibration, and environmental conditions may also need to be reviewed, especially when the defect appears repeatedly or changes between measurement cycles. A systematic approach makes troubleshooting faster and more reliable, because each inspection or test provides information that narrows the list of possible causes.

Improving Process Performance

Many polishing problems can be corrected through small and carefully controlled process adjustments. Large changes may remove too much material or introduce new surface errors, so experienced operators usually make one adjustment at a time and then measure the result.

Changing polishing pressure, replacing a worn polishing pad, conditioning the tool, correcting slurry flow, updating the removal function, or adjusting dwell time may improve polishing accuracy. In some cases, the toolpath or feed rate may also need to be modified so the polishing tool spends more time in areas that require greater correction.

Whenever changes are made, the optic should be measured again to verify that the correction produced the expected result. The new measurement should be compared with the previous error map, because this comparison shows whether the adjustment improved the surface or created a different problem. Successful optimization depends on making controlled changes, documenting each adjustment, and evaluating the results before making additional corrections. This careful process improves repeatability and helps operators build confidence in the polishing system.

Documenting the Process

Good documentation is an important part of deterministic polishing, because accurate records allow operators to understand what happened during each polishing cycle. Operators record machine settings, polishing tools, pad conditions, removal functions, measurement results, slurry information, and process changes throughout production. These records help identify trends, improve repeatability, and simplify future troubleshooting, especially when the same optic type or polishing process is repeated. Documentation also makes it easier to compare successful and unsuccessful runs, which can reveal relationships between process settings and final surface quality. Over time, these records become a valuable knowledge base that helps operators select better starting parameters and avoid repeating earlier mistakes. Accurate documentation supports quality assurance and continuous process improvement, while also providing evidence that required manufacturing procedures were followed.

Interactive Process Optimization and Troubleshooting

This interactive activity reinforces the basic troubleshooting process used in deterministic polishing. You will work through a simple troubleshooting flow, practice choosing controlled process adjustments, and review short polishing scenarios based on common problems. The goal is to develop a systematic approach rather than reacting to a defect by changing several settings at once. The activity emphasizes verifying measurement data, identifying what changed, inspecting the process, making one controlled adjustment, and then measuring the optic again to confirm the result. You will also practice deciding which adjustment is the most appropriate first step for problems such as low removal rate, poor surface finish, edge roll-off, uneven correction, and repeating toolpath patterns.
Lesson 11 – Process Optimization and Troubleshooting

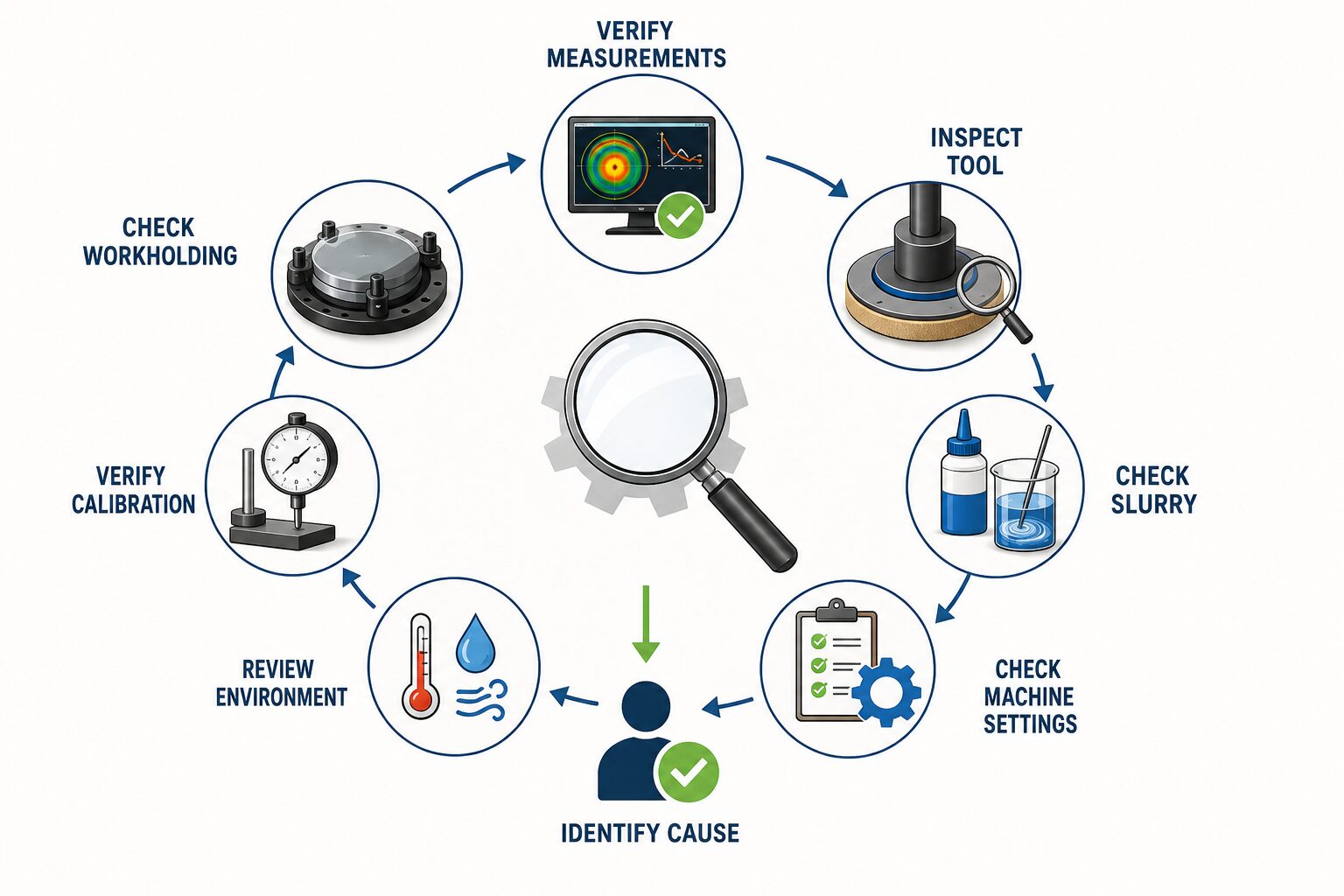

A Simple Troubleshooting Flow

Click each step in order. This is the systematic approach operators should follow before making process changes.

Do This

Avoid This

Rule of thumb: verify evidence first, then change only one thing at a time, and measure again before making another adjustment.

Choose a Problem

Pick a common polishing problem, then choose the first adjustment you think is safest and most useful.

Problem

This lab reinforces optimization logic, not machine-specific programming. The goal is to practice choosing the best first move.

Pick One Controlled Adjustment

Evaluation

Select one adjustment and test it.

Why Documentation Still Matters

After any change, record what changed, why it changed, and what the next measurement showed.

Question1 / 3

Score0

Best PracticeCheck Evidence

Quick Troubleshooting Check

Available Clues

Review the clues and pick the cause that best fits all of them.

Throughout this course, you’ve learned the principles that make deterministic polishing successful, including measurement, removal functions, tool selection, contact mechanics, programming, and process control. The final lesson brings these ideas together by showing how they are applied in real manufacturing environments, while also reviewing the complete polishing workflow from initial measurement through final verification.
