As optical components approach their final specifications, increasingly sophisticated metrology methods are required. Mechanical measurements and shop-floor test plates remain valuable process tools, but final verification often requires measurements with nanometer-level precision. Advanced interferometric instruments provide highly accurate, noncontact measurements capable of evaluating surface form, wavefront quality, and surface texture. These systems are commonly used for final inspection, process validation, and product certification throughout precision optics manufacturing. Modern optical metrology systems not only measure the overall shape of an optic, but can also characterize extremely small surface features that affect optical performance.
A phase-shifting interferometer (PSI) is one of the most common instruments used for precision optical inspection. Most optical manufacturing interferometers use a stabilized helium-neon (HeNe) laser source operating at approximately 632.8 nm. The instrument compares light reflected from the test surface to a highly accurate reference wavefront. Unlike visual fringe interpretation used with test plates, phase-shifting interferometers capture multiple interference images while introducing controlled changes in optical path length. Specialized software then reconstructs the complete surface shape mathematically. The result is a full-aperture, noncontact measurement of the optical surface.
Phase-shifting interferometers can measure power, irregularity, form error, and in some configurations radius of curvature. Results are typically displayed as numerical values, contour plots, and three-dimensional surface maps. Because the measurements are digital and highly repeatable, interferometers are commonly used for final acceptance testing.

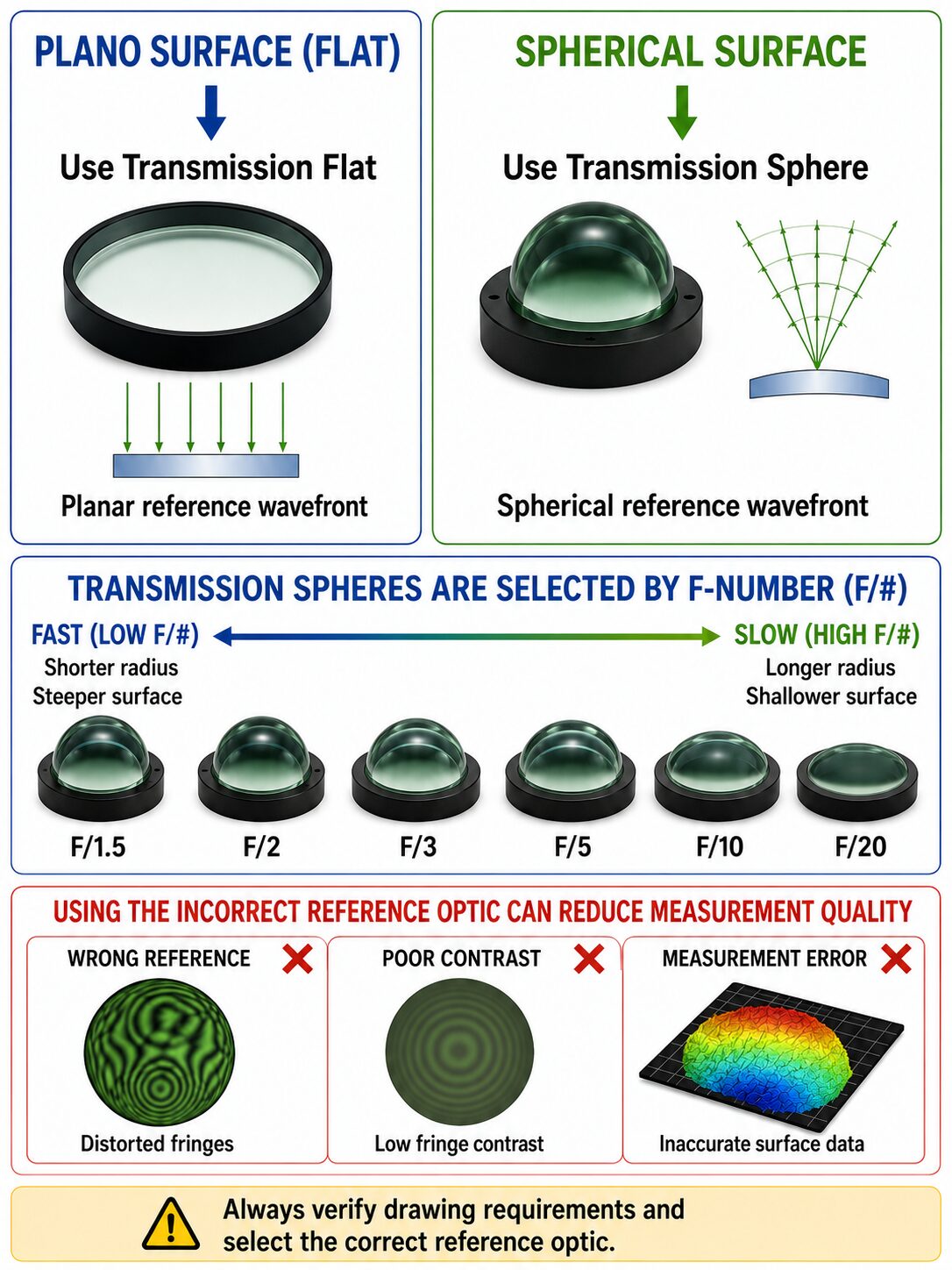

Transmission Flat and Transmission Sphere SelectionThe reference optic used in an interferometer depends upon the geometry of the surface being measured.
Selecting the incorrect transmission optic can reduce measurement quality, produce poor fringe contrast, or introduce significant measurement errors. Technicians must always verify the drawing requirements before selecting reference optics.
Transmission flats and transmission spheres are precision master references and are among the most expensive optics found in a manufacturing environment. Because measurement accuracy depends directly on the quality of these reference optics, they must be handled with extreme care. Scratches, contamination, or coating damage can compromise measurements and may require costly recalibration or replacement. Reference optics should always be stored in their designated protective cases when not in use. Cleaning procedures are often restricted to trained or certified personnel to minimize the risk of damage. Proper cleanliness is especially important because even small particles can affect measurement results or damage optical surfaces.
Surface form is only one aspect of optical quality. Many drawings also specify surface texture requirements that cannot be adequately measured with full-aperture interferometers. An interferometric microscope measures localized surface features over a relatively small area at very high magnification. These instruments provide extremely high vertical resolution and are capable of measuring surface waviness, roughness, polishing artifacts, cutter marks, and mid-spatial frequency errors. Unlike a full-aperture interferometer, which evaluates the entire optic, an interferometric microscope examines a small region of the surface in great detail. Multiple locations are often measured across the optic to fully characterize surface quality.
Surface errors occur over different spatial scales, and each scale affects optical performance differently.
Understanding which error scale is specified on the drawing is essential for selecting the proper metrology instrument.
The drawing specification ultimately determines which metrology tool should be used.
No single instrument is ideal for every measurement. Successful metrology depends on selecting the instrument that best matches the feature being controlled.
Review a drawing or inspection plan and determine whether the specification concerns form, waviness, roughness, or another optical characteristic. Select the appropriate measurement system based on the required accuracy, optic geometry, and drawing requirements. Record the instrument used, reference optic selected, calibration status, environmental conditions, and final measurement results. Documentation should be detailed enough that another technician could repeat the measurement process and obtain comparable results. Discuss how cleanliness, alignment, environmental vibration, reference optic selection, and operator technique could influence the final measurement.
Review the inspection requirement, select the most appropriate measurement instrument and reference optic, verify the measurement conditions, then click Evaluate Setup. Your goal is to create a measurement setup that another technician could repeat with confidence.
Choose the instrument, reference optic, and setup conditions.
