What You Will Learn

• Use a measuring loupe to inspect optical surfaces and edges.
• Identify common cosmetic conditions such as chips, scratches, gray-out, and center nibs.
• Explain why visual inspection can be subjective at higher precision levels.
• Determine when visual inspection is sufficient and when another method is required.

Lesson Video

Video Placeholder: Insert the narrated lesson video for this metrology topic here.

Visual inspection is one of the most frequently performed metrology activities in an optics manufacturing environment. Throughout grinding, generating, polishing, edging, and final inspection, technicians continuously evaluate optical surfaces for defects, contamination, and cosmetic conditions. Although visual inspection is often considered simple, it is a critical manufacturing skill. Many optical defects cannot be identified through dimensional measurements alone. Surface appearance, edge quality, and cosmetic condition must frequently be evaluated by the technician. Visual inspection allows technicians to quickly identify conditions that may affect polishing performance, coating quality, handling safety, or customer acceptance.

Measuring Loupes

A measuring eye loupe combines magnification with a built-in reticle or scale, allowing technicians to inspect small features while estimating dimensions. Measuring loupes are widely used on the shop floor because they are portable, inexpensive, and provide immediate feedback. Common loupe applications include measuring bevel width, evaluating edge chips, inspecting scratches and digs, estimating defect size, checking center nib size, verifying edge condition. Because the scale is integrated into the loupe, technicians can quickly estimate the size of features without moving the part to more advanced metrology equipment. Loupes are especially valuable during in-process inspection, where rapid decisions must be made regarding whether a part can continue through manufacturing.

Limitations of Measuring Loupe

Although measuring loupes are extremely useful, they have limitations. Visual inspection depends heavily on magnification level, lighting conditions, viewing angle, surface cleanliness, operator experience, and individual interpretation.Two technicians viewing the same surface under different conditions may reach different conclusions. For this reason, loupe inspection should generally be considered a screening or evaluation tool rather than a precision dimensional measurement system. When tight numerical verification is required, additional metrology methods may be necessary.

Features measured with measuring loupe

• Chips: Chips are areas where material has fractured away from the edge or surface. Small edge chips may be acceptable depending on drawing requirements and whether they intrude into the clear aperture. Large chips can reduce mechanical strength, create handling hazards, interfere with mounting, cause coating failures, and grow during subsequent processing. The size and location of all significant chips should be documented.
• Bevels: an angled face applied at the intersection of 2 edges or surfaces, to remove the sharp corner at the intersection.
• Center Nibs: Center nibs are small raised features commonly left at the center of an optic after CNC grinding or generating operations. Center nibs occur because the grinding tool cannot completely remove material at the exact center of rotation. If left uncorrected, center nibs can interfere with polishing, create surface defects, affect interferometric measurements, and increase polishing time. Center nib size should be evaluated before polishing begins.

(input modified graphic here, need one for bevels too.)

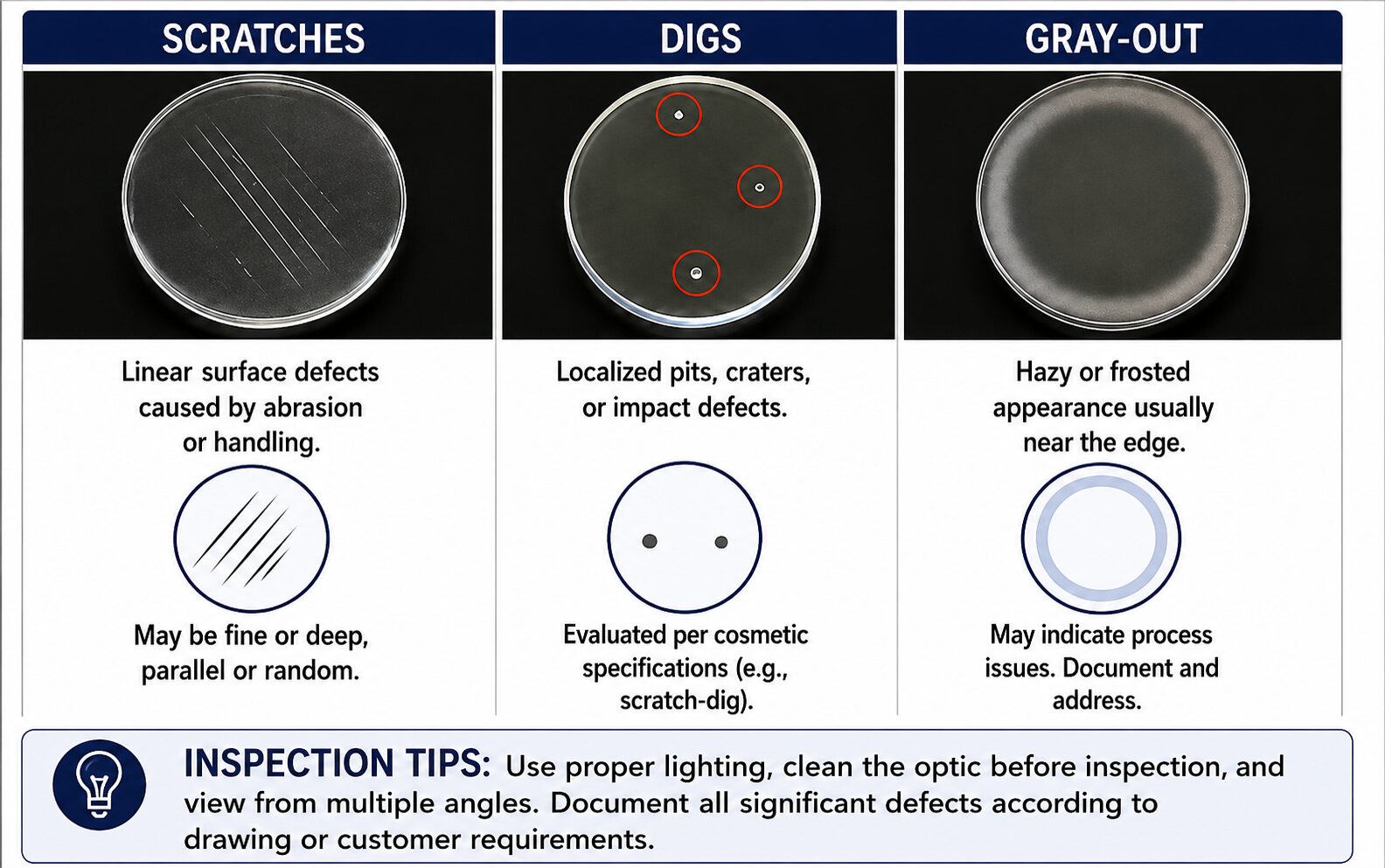

Common Optical Defects

Visual inspection is used to identify a wide range of optical surface and edge defects.

• Scratches: long sweeping defects that can vary in size and length across a surface.  Indicating an abrasion of some sort. Can refract light and be more visible by changing the incoming light angle.
• Digs: small defects that are no longer than they are wide, typically “random” across the surface, can appear as “speckles” or “sparkles” when inspecting.  Can refract light and be more visible by changing the incoming light angle.
• Gray: Uniform “haze” or “cloudiness” on the surface that cannot be cleaned or wiped away.  Usually, the result of residual surface damage from incomplete polishing or grinding processes.

Separating Dirt from Damage

One of the most important visual inspection skills is determining whether an observed feature is contamination or actual damage. Common contamination sources include dust particles, dried slurry, fingerprints, cleaning residue, polishing compound, lint from wipes, and water spots. Before documenting a defect, technicians should always clean the optic using approved procedures and reinspect the surface. If the feature disappears after cleaning, it was contamination rather than true damage. Proper cleaning, lighting, and change of angle of the inspection light source are considered part of the inspection method.

Lighting and Inspection Conditions

Lighting significantly influences what defects can be observed. Technicians may use direct illumination, reflected light, transmitted light, grazing-angle illumination, or fiber optic lighting. Changing illumination angle often reveals defects that are otherwise difficult to detect. For example, scratches and sleeks are frequently easier to observe under grazing illumination, while chips and edge damage may be easier to evaluate using direct lighting. Consistent lighting conditions improve repeatability between inspectors.

Bevel and Edge Applications

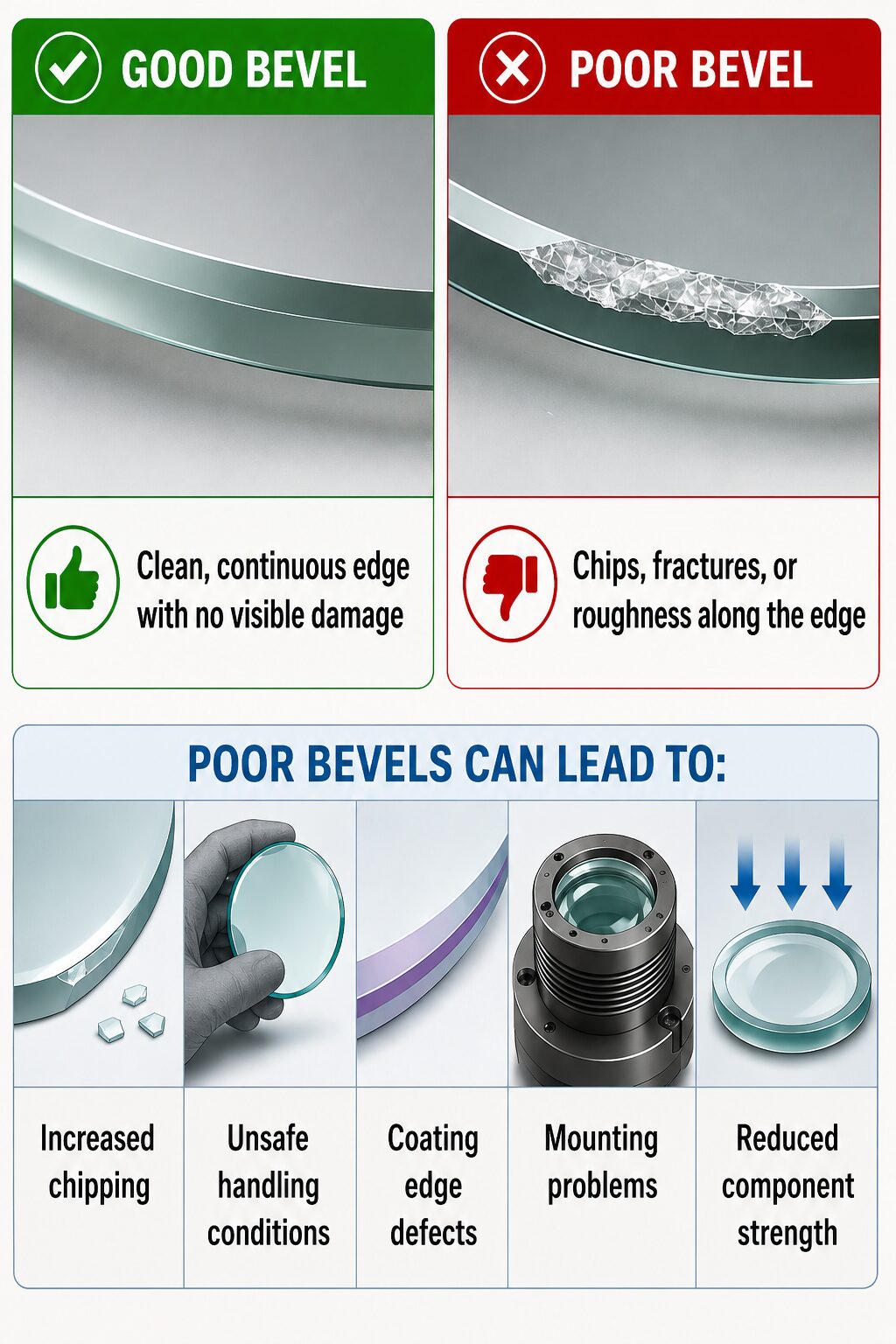

Bevel dimensions are often less tightly controlled than optical form, radius, or thickness. Because bevel tolerances are frequently on the order of ±0.1 mm, a measuring loupe may provide sufficient precision for many bevel inspections. However, even though bevel dimensions may not be highly critical, bevel quality remains extremely important. Poor bevels can lead to increased chipping, unsafe handling conditions, coating edge defects, mounting problems, and reduced component strength. Technicians should inspect both bevel width and bevel quality. A bevel that meets dimensional requirements but contains chips or fractures may still be unacceptable.

When Visual Inspection Is Not Enough

Visual inspection is appropriate when evaluating cosmetic defects, edge condition, bevel quality, surface contamination, and general workmanship. Visual inspection alone is usually not appropriate when verifying surface high-precision surface roughness. When numerical accuracy is required, more advanced metrology methods such as white light interferometry, profilometry, or inspection under high resolution camera systems should be used.

Shop Floor Practice

Review a drawing or inspection plan and identify the cosmetic or dimensional feature being controlled. Inspect optical surfaces under multiple lighting conditions. Document any observed defects, estimate their size, and determine whether additional metrology is required. Discuss how lighting, cleanliness, viewing angle, and operator interpretation may influence inspection results.

Key Takeaways

• Visual inspection is an essential metrology tool throughout optics manufacturing.
• Measuring loupes provide fast evaluation of defects, edge condition, and cosmetic quality.
• Lighting, cleanliness, and operator technique strongly influence inspection results.
• Gray-out, scratches, chips, digs, and center nibs should all be documented appropriately.
• Visual inspection is often sufficient for cosmetic evaluation but may not provide adequate accuracy for tight dimensional verification.

Knowledge Check

1. What features can be checked with a measuring loupe?
2. Why can visual inspection become subjective?
3. What is gray-out and why should it be documented?
4. When might loupe precision be acceptable for bevel inspection?
5. Why should optics always be cleaned before documenting defects?
6. When should additional metrology methods be used instead of visual inspection alone?
