Lesson 1 – Introduction to Optical Metrology

What You Will Learn

• Explain why metrology is part of every optics manufacturing step, not just final inspection
• Describe how polishing changes the measurement and handling requirements of an optical surface
• Identify contamination risks that can damage polished optics or affect inspection results
• Connect cleaning, handling, and measurement discipline to process control

Why Metrology Matters

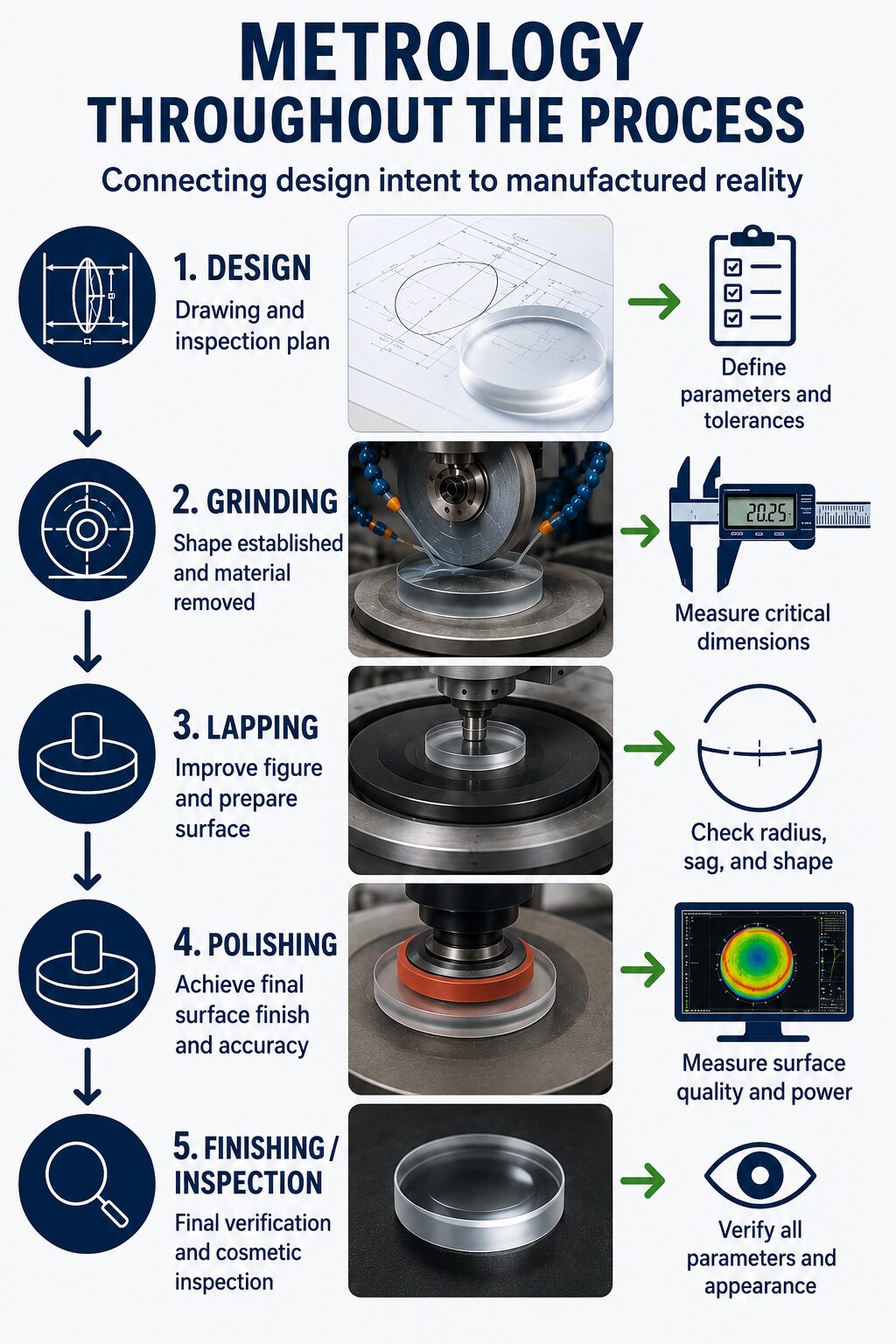

Metrology is “the science of weights and measures” as defined in the Miriam Webster dictionary.  For manufacturing purposes, metrology is the method and science of acquiring data about the geometry size and shape of an object, in our case an optic.  Using precise measurement tools to collect data about an object requires skill and understanding of proper methodologies.   Using appropriate metrology to methods connects design intent to manufactured reality in optical fabrication. It is not limited only to final inspection; it is embedded throughout the entire manufacturing process from making the rough blank from slab material through polishing.

Every optical component is defined by a drawing or inspection plan that may include a variety of different features, such as length, width, diameter, thickness, radius of curvature, sag, wedge, surface power, irregularity, surface finish, cosmetic quality (surface defects), etc… These are not static checks performed at the end. They are controlled parameters that must remain within tolerance as the part moves from one operation to the next. Metrology provides the feedback loop that allows technicians and engineers to make decisions during production. Measurements determine whether a part continues forward, requires additional processing, needs re-cleaning, or may need engineering review. Proper in process measurement provides feedback to the technician on the success of the process at hand and can prevent defective parts.

Lapping, Polishing, and Measurement Sensitivity

Lapping and polishing both remove material using abrasive processes, but they operate at different scales and introduce different levels of surface sensitivity. Lapping is used for bulk material removal and geometric correction. It leaves a relatively rough, matte surface that is less sensitive to minor contamination or handling variation. Polishing transitions the surface into its final optical condition using much finer abrasives and significantly lower removal rates. As a surface becomes polished, it becomes increasingly sensitive to environmental and chemical effects. Small amounts of residue, moisture, or handling contamination can alter how the surface behaves during measurement. Conditions such as slurry and or pitch residue, fingerprints, humidity effects, and dried polishing compounds can all influence inspection results. At this stage, the part is no longer just a shaped piece of glass. It becomes a functional optical surface where even minor contamination can affect measured performance or appear as false defects.

Cleaning Before Measurement

Cleaning is an essential step between processing and inspection. Any residue left from polishing or lapping can directly interfere with measurement accuracy and lead to incorrect conclusions about part quality. Grinding and polishing slurry, left on the surface can stain glass over time or distort interferometric readings. Contamination at the edges of a part can also migrate onto the optical surface during handling or inspection, creating artifacts that appear as scratches, pits, or surface irregularities. Proper cleaning methods use approved optical materials such as lint-free lens tissue and controlled solvents like acetone and methanol. The goal is not only to make the surface visually clean, but to ensure that no foreign material influences the measurement process or is mistaken for true surface error. Cleaning must always be completed before measurement because inspection results are only valid if the surface being measured represents the actual manufactured condition of the optic.

Shop Floor Practice

Effective metrology practice begins with understanding the inspection plan and what features the measurement is intended to verify. Technicians should first identify which dimensions or surface characteristics are being specified, then select the appropriate measurement method for that feature. The setup and handling of the part must support repeatable results. This includes proper cleaning, controlled handling techniques, and stable measurement conditions. During measurement, attention must be given to whether setup choices, operator technique, or environmental conditions could influence the result. All measurements should be recorded in a clear and repeatable format so that another technician could reproduce the process and obtain the same result. When results fall outside expected variation, the technician must consider whether the issue is related to the process itself or to measurement conditions. Metrology is ultimately a decision-making tool. It determines whether a part continues forward in production, requires rework, or needs engineering evaluation.

Knowledge Check

• Why is metrology important before final inspection?
• What makes polished surfaces more sensitive than lapped surfaces?
• Name two contamination sources that can affect optical inspection results.
• Why should optical parts be cleaned promptly before measurement?
