Precision optics manufacturing depends on accurate measurements. Every grinding, generating, lapping, and polishing operation changes the geometry of an optical component, and technicians must verify that those changes are occurring as intended. Many measurements on the shop floor are performed using handheld tools such as calipers and micrometers. Although these tools appear simple, incorrect technique can easily introduce measurement error that exceeds the actual manufacturing tolerance.
Choosing the correct tool and using it properly are essential skills for any optical manufacturing technician.
Digital calipers are among the most common measurement tools found in an optics shop. They are versatile, fast, and capable of measuring several different features with a single instrument. Typical caliper measurements include outside diameter (OD), inside diameter (ID), overall length, blank thickness, step dimensions, and depth measurements.
Calipers are frequently used during rough manufacturing operations because they allow technicians to quickly determine whether sufficient material remains for future processing. For example, a technician would use calipers to verify current blank dimensions, approximate center thickness and diameter, evaluate tooling size. These measurements help determine when the part is ready to move to the next manufacturing step or provide information necessary for machine set up.
Scale approx: 1 px ≈ 0.02 mm. Reading uses main scale + vernier offset.
Digital display show resolution to 0.01 mm, calipers should not be confused with precision metrology instruments. Several factors limit their practical accuracy, including measuring jaw alignment, operator pressure, angular misalignment (tilt), dirt or debris on the jaws, and wear of the measuring surfaces.
In many optical applications, the practical accuracy of a handheld caliper is approximately ±0.010 mm under normal shop conditions. Because of these limitations, calipers are generally used for rough checks, blank dimensions, in-process verification, and noncritical dimensions. Calipers are generally not appropriate for final verification of tightly controlled optical features.
When tighter dimensional control is required, technicians typically use a micrometer. Micrometers provide significantly greater precision because the measuring faces remain parallel and the spindle advances using a precision screw mechanism. Typical micrometer applications include final diameter measurements, thickness verification, and precision controlled mechanical dimensions. Many shop micrometers can reliably measure to 0.001 mm (1 micron) when properly maintained and used correctly. Because modern optical components often require extremely tight tolerances, micrometers are commonly used during final manufacturing and inspection operations.
One major advantage of a micrometer is the use of a ratchet stop or friction thimble. The ratchet applies a consistent measuring force each time the tool is used. Without controlled force, excessive pressure can compress soft materials, too little force can produce unstable readings, and different operators may obtain different results. Using the ratchet properly improves measurement repeatability and reduces operator variation.
Even precision tools can produce inaccurate results if used incorrectly.

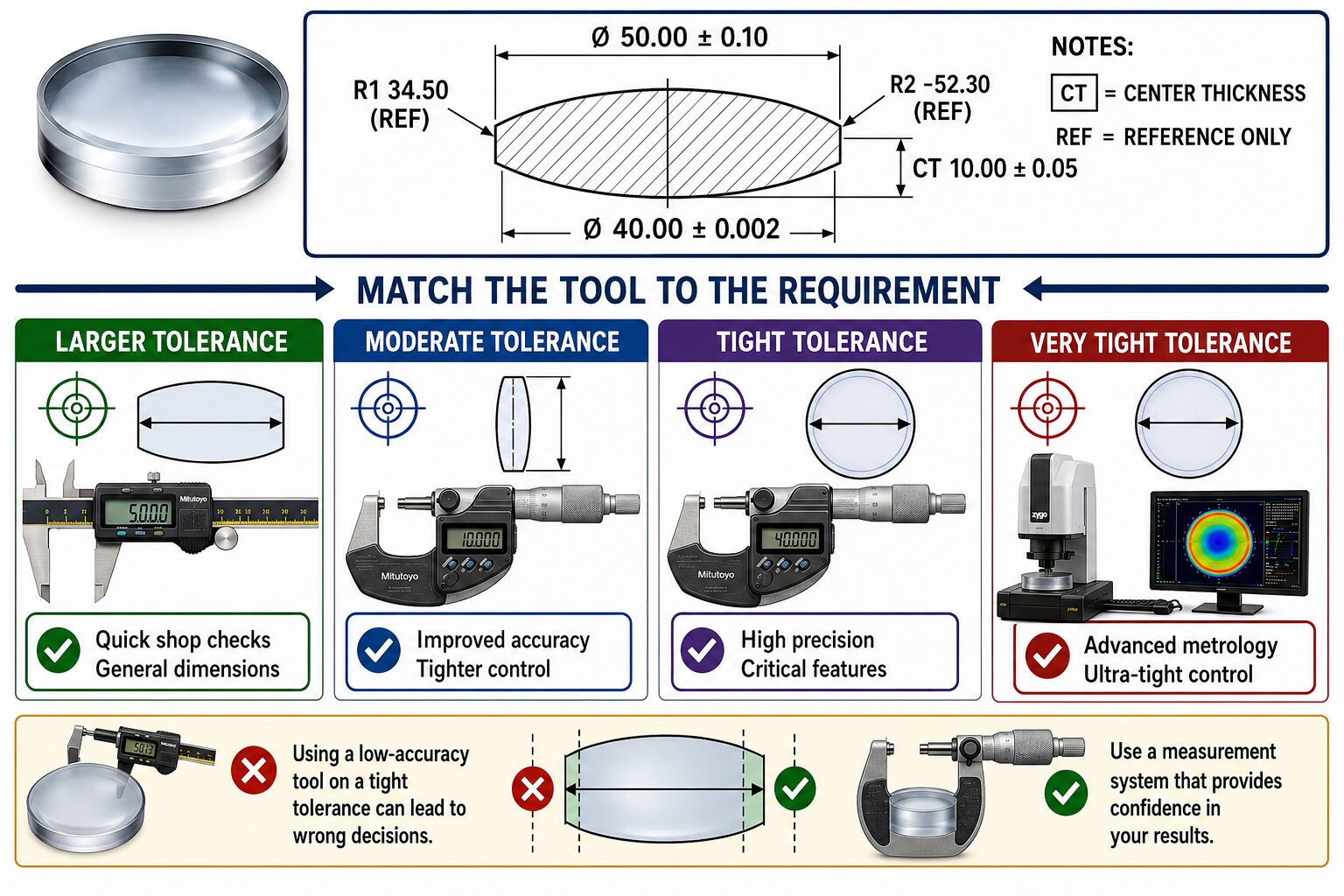

The required tolerance on the drawing determines which measurement method should be used. Measurement tools should always be selected based on required tolerance, feature geometry, measurement uncertainty, and repeatability requirements. A common rule is that the measuring system should be significantly more accurate than the tolerance being verified. For example, a blank OD tolerance of ±0.10 mm may be measured with a digital caliper, final optical diameter tolerance of ±0.002 mm would require a precision micrometer. Varifying a tight tolerance using an insufficient tool can result in false acceptance or false rejection of parts.
Not every dimension shown on a drawing is intended to be measured and documented. Many drawings contain reference dimensions. Reference dimensions provide additional information, aid manufacturing or setup, and are typically enclosed in parentheses. They do not define acceptance criteria. Because reference dimensions are informational only, they are generally not recorded as inspection data unless specifically required by the inspection plan. Controlled dimensions, however, have defined tolerances, affect part acceptance, and must be measured and documented. Technicians should always review the drawing carefully before beginning inspection to determine which dimensions are controlled.
Before taking any measurement, technicians should review the drawing or inspection plan, identify the feature being controlled, determine the required tolerance, select the appropriate measurement tool, verify the tool is clean, calibrated and functioning properly, clean the surface to be measured carefully, use consistent measurement technique, and record results clearly and completely. Measurements should always be documented so another technician could repeat the process and obtain the same result. If repeated measurements vary significantly, the technician should investigate operator technique, tool condition, setup method, environmental conditions, and part cleanliness. Repeatability is one of the strongest indicators of a reliable measurement process.
