As optical surfaces approach their final shape during polishing, conventional mechanical measurements become less effective. At this stage, optical testing methods are required to evaluate surface accuracy. One of the most widely used shop-floor methods is test plating. Test plating compares an optical surface against a highly accurate reference surface known as a test plate. By observing interference patterns created between the test plate and the optic, technicians can determine whether additional polishing is required. Modern optics manufacturing also uses interferometers to evaluate surfaces. Interferometers provide digital measurements and detailed surface maps, but test plates remain an important production tool because they are fast, inexpensive, and easy to use on the shop floor.
Test plating uses a precision reference surface and monochromatic light to compare an optic against the desired geometry. When the test plate is placed in close proximity to the optical surface, a very thin air gap exists between the two surfaces. Light reflecting from both surfaces interferes with itself, producing a series of bright and dark bands known as interference fringes. These fringes reveal differences between the optic and the reference.
The light source used for test plating is typically monochromatic, meaning it consists of a single wavelength. Common shop-floor sources operate in the green or yellow portion of the spectrum, usually between approximately 540 nm and 580 nm. Because the wavelength is known precisely, fringe patterns can be used to evaluate extremely small surface deviations. A key requirement of test plating is that the test plate must be the inverse of the surface being tested. A convex optical surface requires a concave test plate, while a concave optical surface requires a convex test plate. This inverse relationship allows the surfaces to nearly match, producing interpretable fringe patterns.

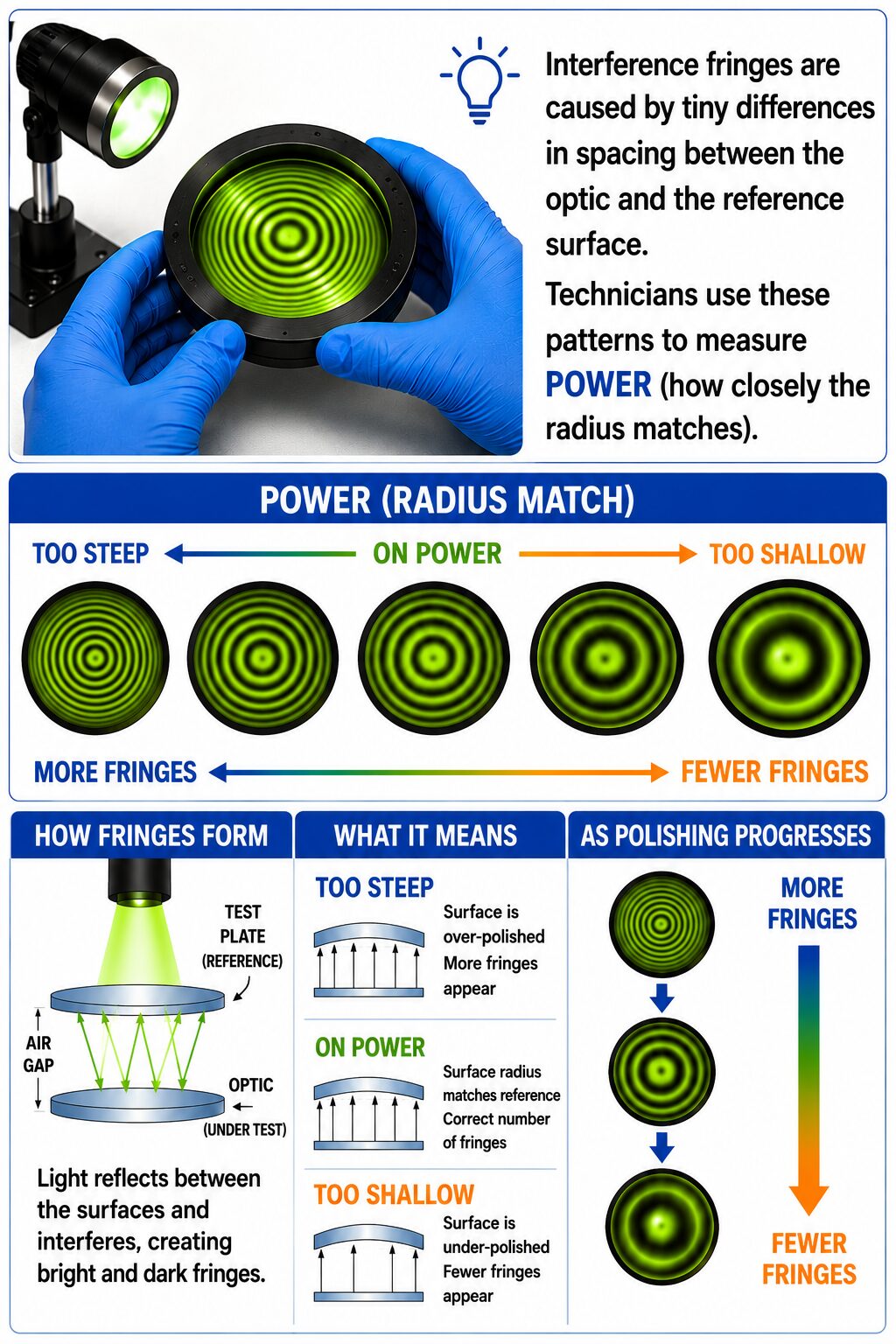

Interference fringes are the visible result of differences in spacing between the optic and the reference surface. Each fringe represents a very small change in optical path length. Because light wavelengths are extremely small, even minor changes in surface shape become visible. Technicians analyze fringe patterns to determine two important surface characteristics: power and irregularity. Learning to interpret fringe patterns is an essential skill in optics manufacturing.
Power describes how closely the radius of the optic matches the reference surface. When the optic and test plate have nearly identical radii, only a few widely spaced fringes appear. As the difference between the radii increases, additional fringes become visible. Circular, evenly spaced rings indicate that the surface is spherical and differs from the reference primarily in radius. The number and direction of the fringes help technicians determine whether the surface is too steep, too shallow, or very close to the intended radius. As polishing progresses, the number of fringes generally decreases until the required radius is achieved. Technicians often describe power in terms of the number of interference fringes observed.
Irregularity describes localized deviations from the desired spherical shape. Unlike power, irregularity does not appear as additional circular rings. Instead, irregularity is observed when fringes become distorted, wavy, bent, or uneven. A perfectly spherical surface produces smooth, round, evenly spaced fringes. Distorted fringe patterns indicate departures from the ideal surface. Common examples of irregularity include zones, turned edges, ripple, astigmatism, and other localized surface errors. Interpreting irregularity requires considerable experience because subtle fringe distortions may represent significant optical errors. At very high accuracy levels, interpretation can become subjective.
Selecting the proper test plate is critical. The reference plate must closely match the desired radius of the optic. If the radii differ significantly, too many fringes may appear, making interpretation difficult or impossible. Technicians should always verify the test plate radius, surface type, calibration status, cosmetic condition, and cleanliness before use. Scratches, contamination, or damage on the test plate can produce misleading fringe patterns and incorrect conclusions.
Test plating offers several advantages in production environments. It is fast, relatively inexpensive, highly sensitive, and suitable for shop-floor use. The method allows technicians to evaluate both power and irregularity simultaneously. Because the method provides immediate visual feedback, technicians can quickly determine whether additional polishing adjustments are needed. Test plating remains one of the most effective process-control tools used during conventional optics manufacturing.
Despite its advantages, test plating has several limitations. The greatest limitation is the requirement for a closely matched reference surface. Without the proper test plate, the intended surface cannot be evaluated directly. Test plating is also a contact or near-contact method. The optic and reference plate must be brought into close proximity, creating the possibility of cosmetic damage. Potential risks include scratches, sleeks, surface contamination, coating damage, and damage to the test plate itself. Proper cleanliness is essential because even small particles trapped between surfaces can damage expensive optics. Technicians should thoroughly clean both surfaces, inspect the test plate before use, handle optics carefully, and avoid sliding the optic across the reference surface.
Modern interferometers perform many of the same measurements as test plates but with significantly greater automation and precision. Interferometers use coherent light and sophisticated optical components to produce highly detailed measurements of surface shape. Unlike traditional test plating, interferometers can quantify power and irregularity digitally, generate full surface maps, reduce operator subjectivity, archive measurement results electronically, and measure complex optical surfaces. Interferometers are commonly used for final inspection and certification because they provide objective, repeatable measurements. However, test plating continues to be widely used because it is fast, practical, and cost-effective for in-process measurements.

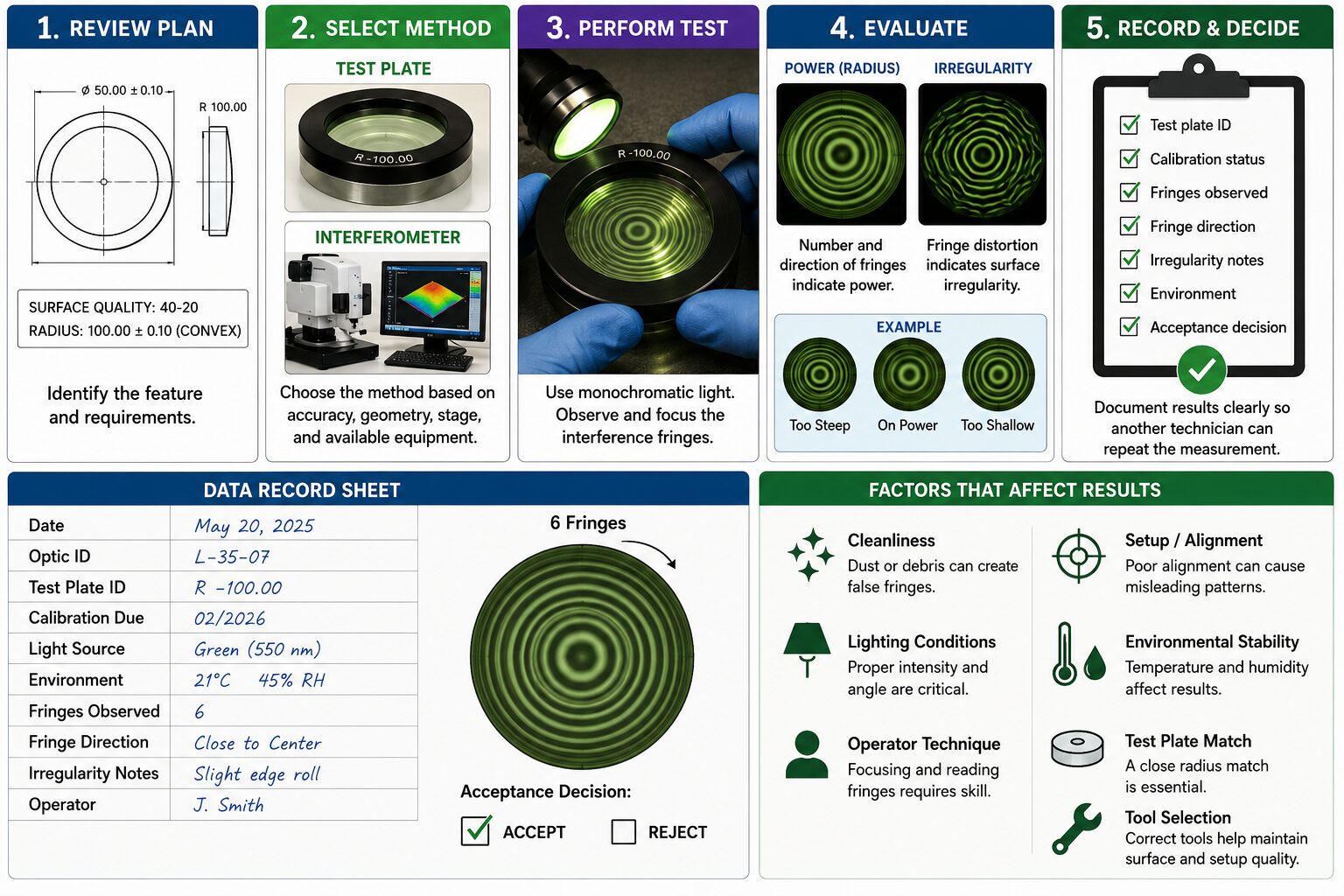

Review a drawing or inspection plan and identify the feature being controlled. Determine whether power, irregularity, radius, or another optical parameter is being specified. Select the appropriate metrology method based on the required accuracy, optic geometry, production stage, and available equipment. Record the test plate identification, calibration status, number of fringes observed, fringe direction, irregularity observations, environmental conditions, and final acceptance decision. Documentation should be detailed enough that another technician could repeat the measurement and reach similar conclusions. Discuss how operator technique, cleanliness, setup, lighting conditions, and tool selection could affect the observed fringe pattern and influence the final measurement result.
