The Fundamentals of Grinding

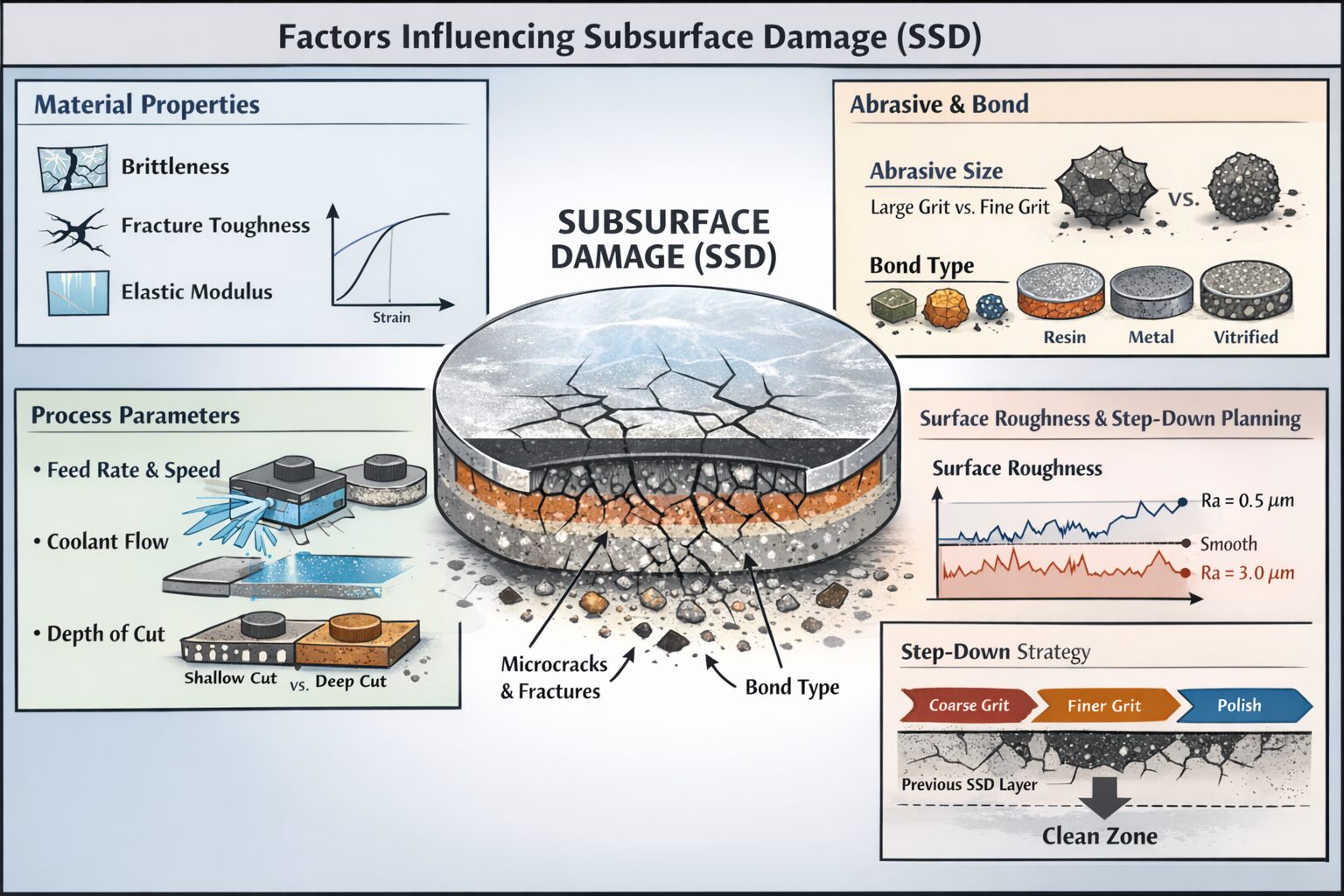

Subsurface damage in precision grinding is not controlled by a single factor. It is the result of interacting variables within the material, the tool, and the machine process. Understanding SSD requires thinking in terms of systems rather than isolated inputs.

Material properties play a major role in how damage forms. Brittle materials with low fracture toughness are more prone to crack initiation and propagation. Modulus of elasticity influences how stress distributes beneath the abrasive contact zone. Some glasses transition into ductile-regime cutting more easily than others, which directly affects crack formation.

Abrasive characteristics are equally critical. Abrasive type, particle size, and concentration determine the scale and intensity of forces delivered to the surface. In most cases, the largest abrasive particle present sets the maximum potential depth of damage. For this reason, specifying abrasives by micron size rather than mesh grade is essential when minimizing SSD is the objective.

The bond system, whether resin, metal, or vitrified, influences how securely abrasive particles are held and how stable the cutting interface remains. A softer bond may release worn grits more readily, while a harder bond may maintain shape but increase grinding forces. Each choice affects crack formation beneath the surface.

Process parameters further shape SSD depth. Feed rate, spindle speed, depth of cut, and coolant flow all influence the amount of mechanical and thermal energy introduced into the workpiece. Excess energy promotes brittle fracture and deeper crack penetration.

Surface Roughness as an Indicator of SSD

Surface microroughness provides a practical and measurable indicator of likely subsurface damage depth. While it does not directly measure cracks below the surface, it correlates strongly with them. Coarser surface finishes generally imply deeper and more severe subsurface cracking. Smoother finishes are typically associated with shallower SSD layers. Metrology tools that measure roughness parameters such as Ra and Rz allow engineers to quantify the condition of the surface and estimate how much material must be removed in the next stage. Roughness measurements serve as decision tools. If the measured surface texture exceeds expected values, it may indicate excessive force, oversized grit, or unstable machine conditions. Correcting those inputs early prevents unnecessary polishing burden later.

Planning Step-Downs with Margin

Grinding and polishing must be structured as a deliberate sequence of progressively finer operations. Each stage must remove enough material to cut completely beneath the crack layer introduced in the previous step. This requires planning removal depth with margin. Engineers do not simply remove the estimated SSD depth; they build in additional material removal to ensure that residual cracks are fully eliminated. Without this margin, hidden cracks may persist and compromise final strength or laser performance.

When executed correctly, each stage leaves behind a shallower and more uniform damage layer than the one before.

SSD Control as Optimization

Ultimately, controlling subsurface damage is best viewed as a multi-variable optimization problem. Wheel design, grit size and concentration, bond hardness, machine stiffness, feeds and speeds, and coolant delivery must all be balanced to maintain stable removal conditions. Even a single oversized grit particle can create a crack deeper than the planned removal margin. Similarly, excessive feed rate or inadequate coolant can introduce thermal stress that drives crack propagation. When parameters are properly tuned, the process supports ductile-regime grinding, minimizes crack initiation, and reduces polishing time. The result is an optic with lower residual damage, improved mechanical strength, and greater long-term reliability.

The key takeaway from this lesson is that SSD does not occur randomly. It reflects the total energy and stability of the grinding system. Control the variables, and you control the damage.

Factor	Effect on SSD	Engineering Action
Surface Microroughness (Ra, Rz)	Coarser finish = deeper subsurface cracks Smoother finish = shallower SSD	Measure roughness with metrology tools Plan material removal margins
Process Sequencing	Each step must cut beneath cracks from the prior step	Use progressively finer grinding/polishing stages
Abrasive Grit & Concentration	Oversized grit or wrong concentration increases SSD	Specify micron size, tune concentration for removal vs. finish
Bond Hardness & Wheel Design	Hard bonds last longer but can roughen surfaces Soft bonds cut cleaner but wear quickly	Select bond type per step to balance life vs. finish
Machine Dynamics & Parameters	Unstable feeds/speeds or imbalance → higher SSD & MSF	Optimize K‑Ratio, maintain ductile‑regime grinding
Coolant Delivery	Poor cooling leads to thermal stress & deeper cracks	Ensure effective coolant flow and flushing
